Selecting Tag Options

You can modify the tag (placeable) mode, representation and font size in the Preferences tab.

Note:

The project as configured in Project Director (PD) may not support formatting tags.



To modify tag options:

  1. Click the Preferences tab
    OR
    Press F9.



  2. Click Tags.

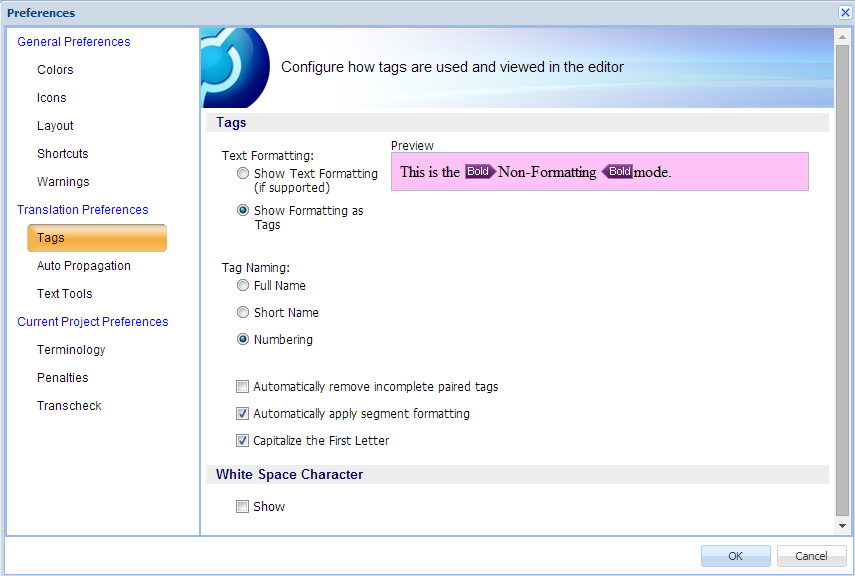

    The Tags dialog box appears.

  3. You can modify the Tag options in the following criteria:

    Select

    Description

    Text Formatting

    Show Text Formatting

    Show actual formatting associated with formatting tags (when supported). When selected, a preview appears.

    Show Formatting as Tags

    Show the content of the formatting tags. (When selected, a preview appears, as shown in the example above.)

    Tag Naming

    Full Name

    View full name of the tag. For example, Font.

    Short Name

    View short name of the tag. For example, F.

    Numbering

    View the tag as a number.

    Automatically remove incomplete paired tags

    Delete incomplete or incorrect tags

    Automatically apply segment formatting

    Automatically apply formatting to the entire segment

    Capitalize First Letter

    Capitalize the first letter of the first word in the segment

    White space Character

    Show

    To show white spaces as a middle dot (ยท)
